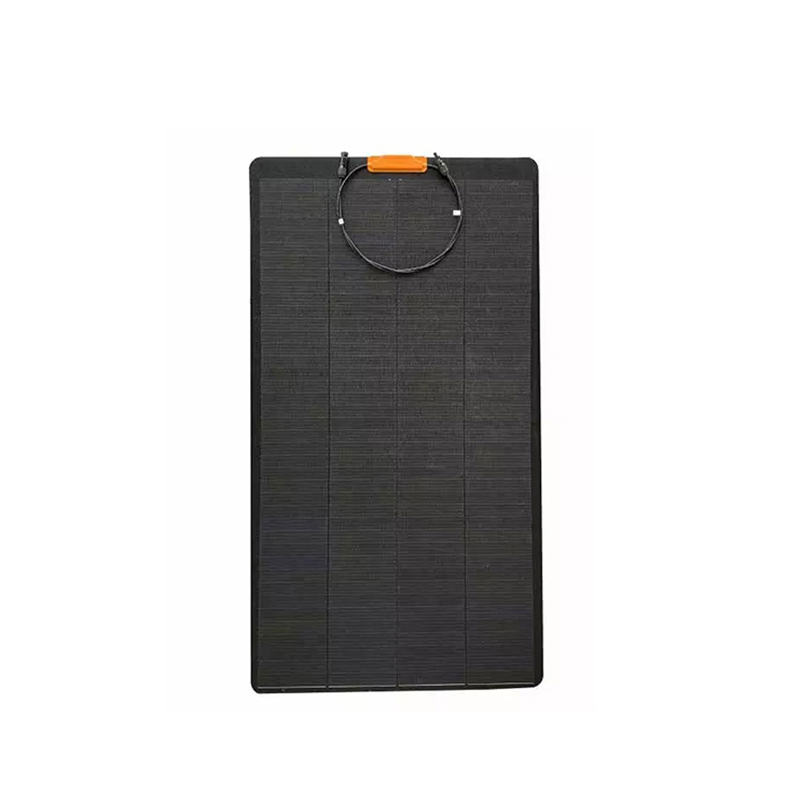

ETFE Flexible Solar Panel

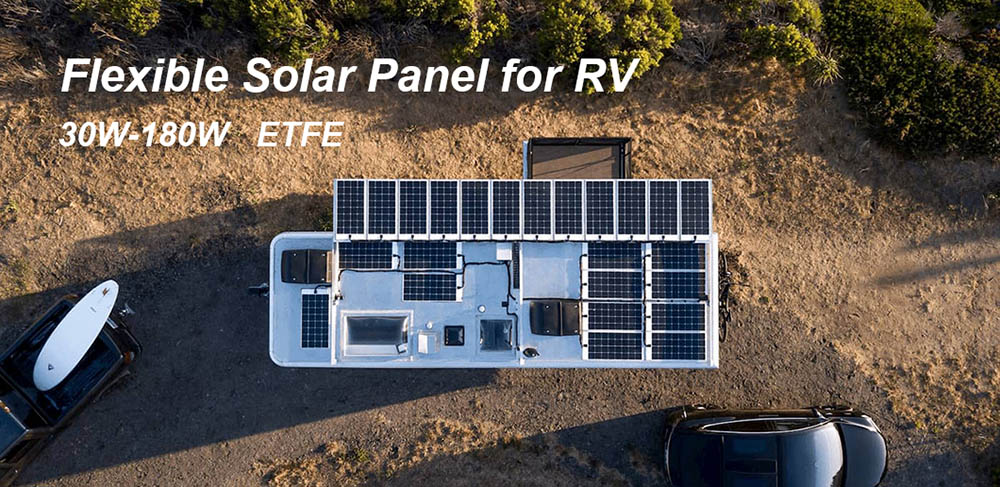

ETFE 30W 60W 100W 150W 180W flexible solar panel for RV caravan solar energy system

Product categories

New Products

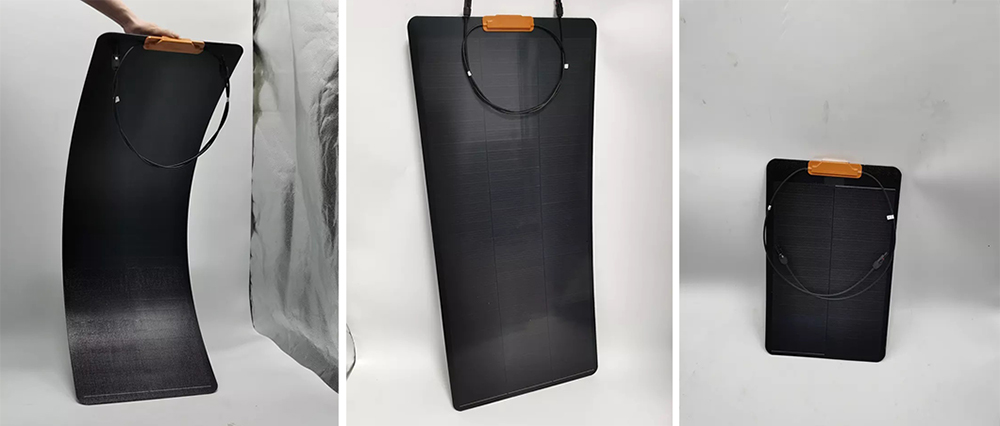

1. Upgraded efficiency and unprecedented flexibility.

2. Weakened hot-spot effect, extremely low risk of micro cracks and increased stability by shingle-tech.

3.Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.

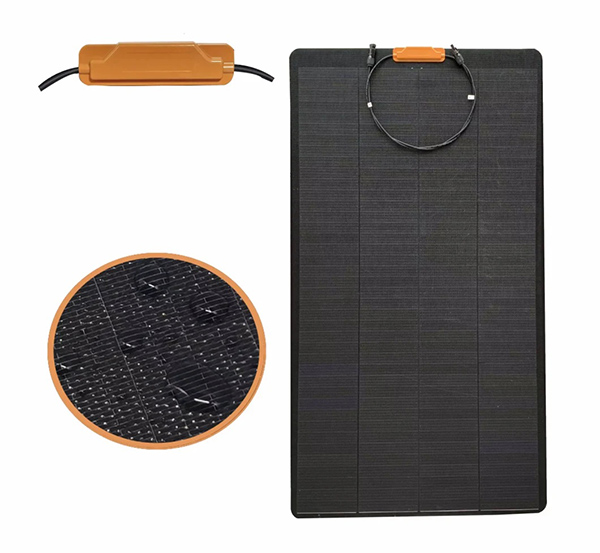

4. IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability

Electrical Specification

Standard Test Conditions AM=1.5, E=1000W/m2, TC=25ºC
Nominal Power	30W	60W	100W	150W
Cell Type	Monocrystalline	Monocrystalline	Monocrystalline	Monocrystalline
Cell Efficiency	21.40%	21.40%	21.40%	21.40%
Maximum Power Current (Impp)	1.70A	3.30A	5.04A	6.97A
Maximum Power Voltage (Vmpp)	17.65V	18.21V	19.86V	21.52V
Open-circuit Voltage (Voc)	21.07V	21.73V	23.70V	25.68V
Short-circuit Current (Isc)	1.79A	3.48A	5.34A	7.42A
Maximum System Voltage	100V	100V	100V	100V
Output Tolerance	3%	3%	3%	3%
Cable	500mm / 2.5mm2	500mm / 2.5mm2	500mm / 2.5mm2	500mm / 2.5mm2
Connector Type	MC4 / MC4 Compatible	MC4 / MC4 Compatible	MC4 / MC4 Compatible	MC4 / MC4 Compatible
Module Structure	EFTE / EVA / Backsheet	EFTE / EVA / Backsheet	EFTE / EVA / Backsheet	EFTE / EVA / Backsheet
Junction box rating	≥IP67	≥IP67	≥IP67	≥IP67
Number of Diodes	One	One	One	One
Working Temperature	-40ºC~+80ºC	-40ºC~+80ºC	-40ºC~+80ºC	-40ºC~+80ºC
Packaging
Module Dimensions	5703502mm	10703502mm	11505102mm	12406702mm
Module Weight	0.9kg	1.50kg	2.50kg	3.50kg
Package	Single Package	Single Package	Single Package	Single Package
Pieces per Pallet	56	64	25	25
Gross Weight per Pallet	85kg	130kg	85kg	110kg
Pallet Dimensions	12001100500mm	12001100500mm	12001100700mm	12701180800mm

Certifications
