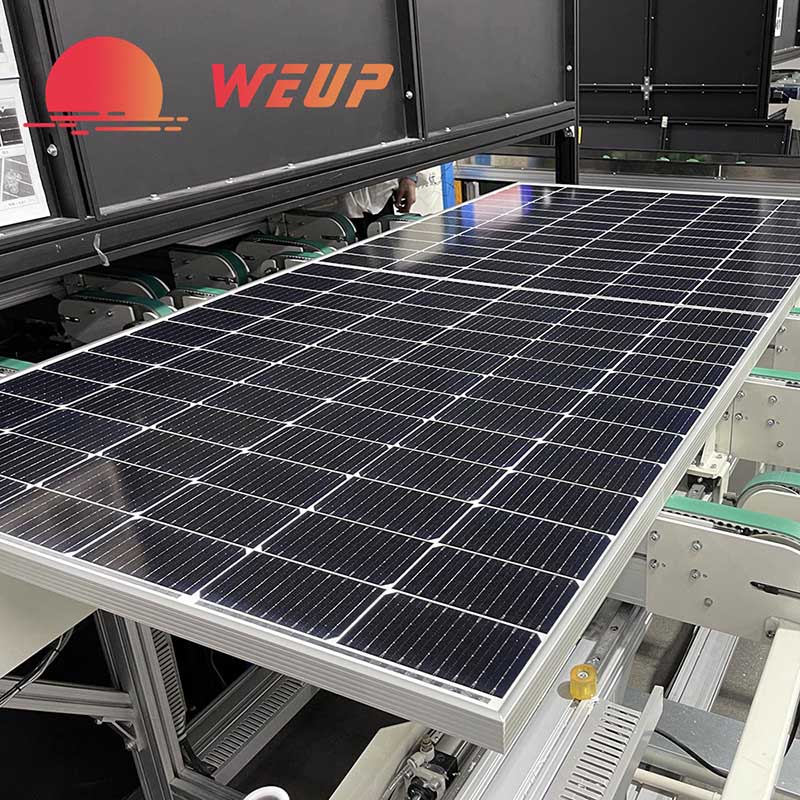

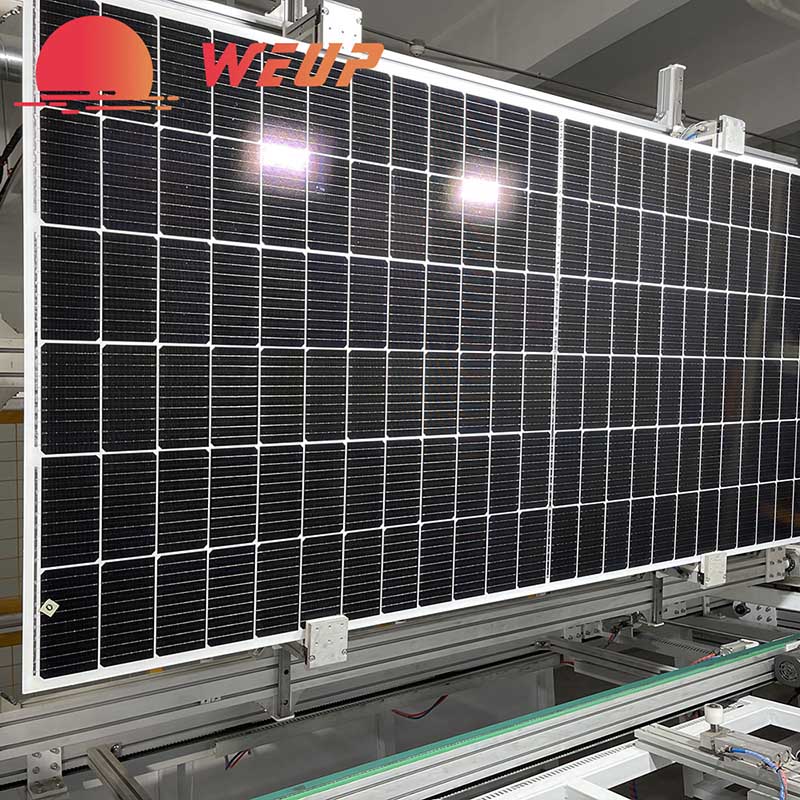

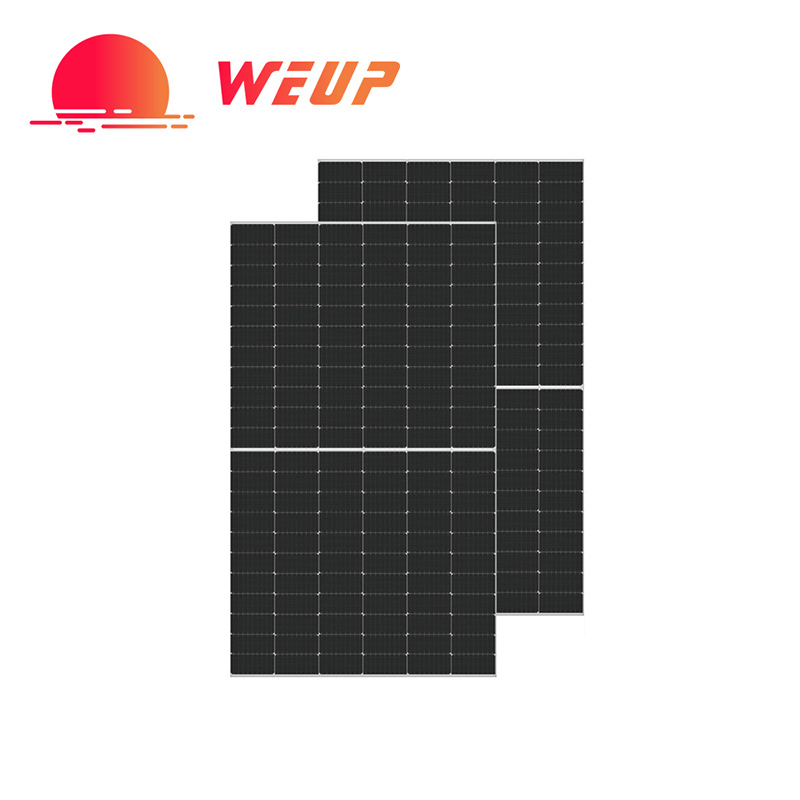

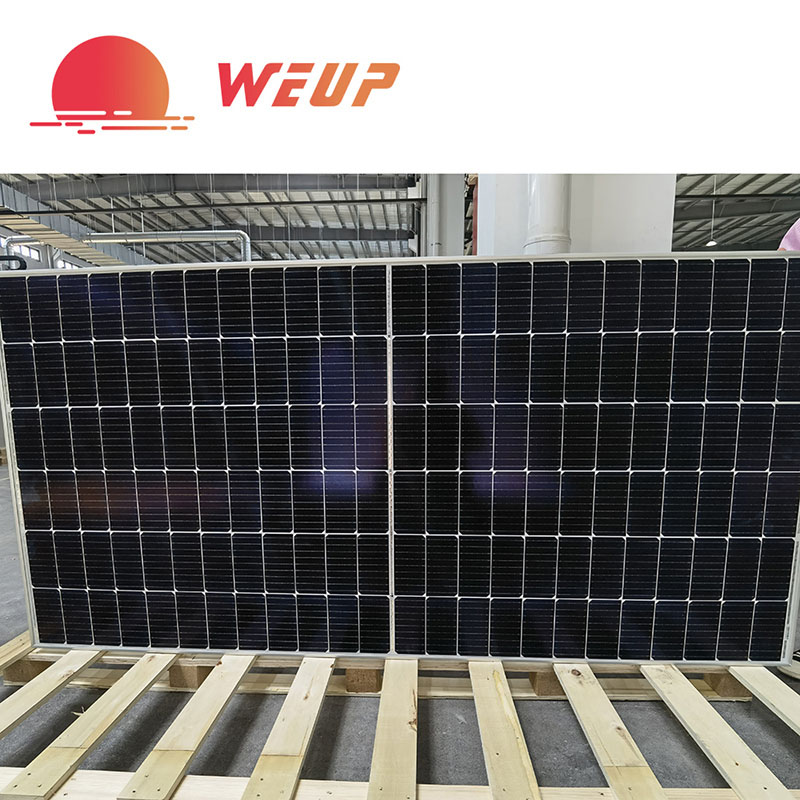

500W Mono Half Cut MBB Solar Energy PV Panel

Monocrystalline MBB With 182mm Cells Mono PERC Half-cut Technology, 500W.

  • Model :

    WP500M10-66HPH
  • Solar Cell :

    Mono PERC 182mm
  • Weight :

    26kg
  • Dimensions :

    2094*1134*35mm
  • Connector Type :

    MC4 PV Connector
  • Junction Box :

    IP68, 3 Bypass Diode
  • Cables :

    4mm2

Large-format modules with M10 wafer size use frame packaging to ensure module strength. Monocrystalline PERC cells is more efficient, Low current density technology effectively reduces the internal power consumption of components. MBB and half-chip technology to reduce the impact of hidden cracks and shading on module power generation Lower system and labor costs.







Technology

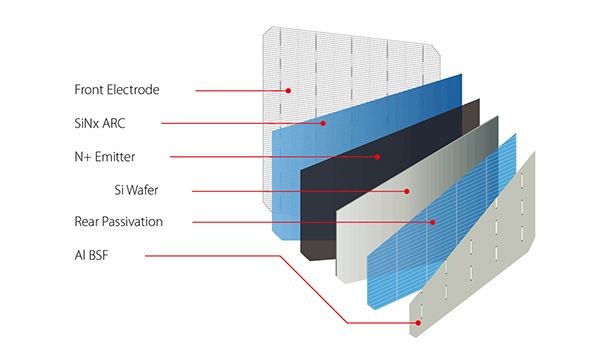

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

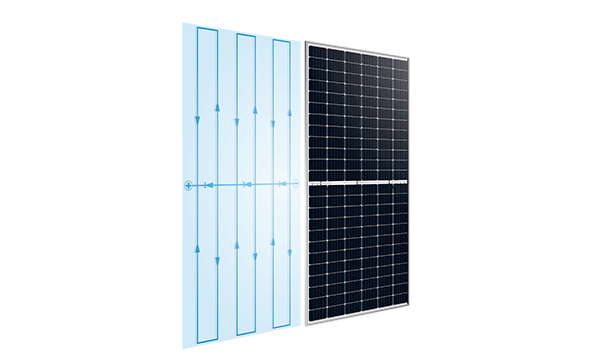

Half-cut cell is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module's power increases. The reliability of module is also enhanced.The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.

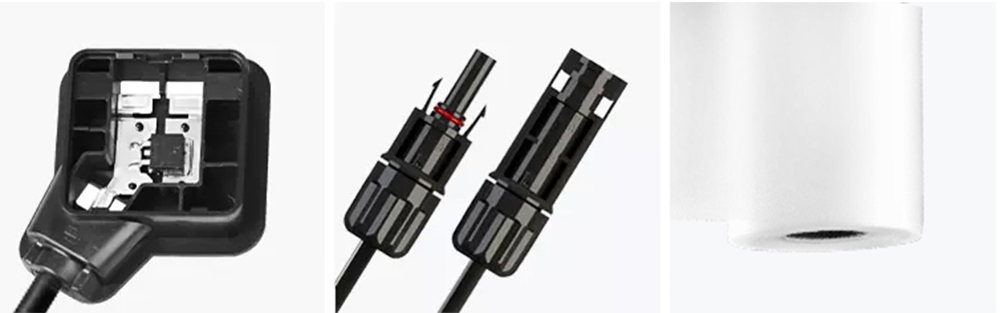

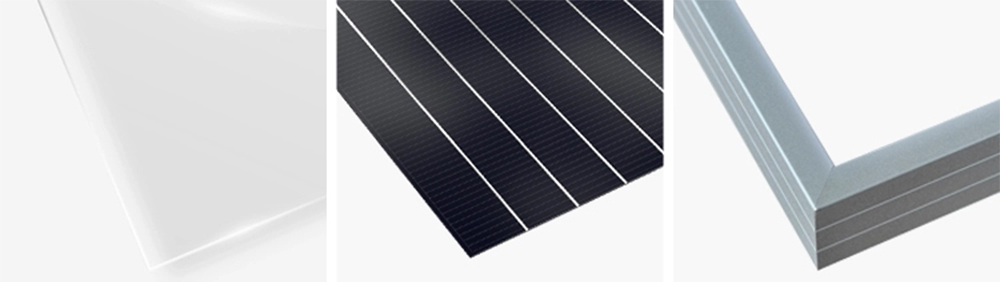

Materials

12%  Ultra Clear Tempered Glass. Higher Efficiency, 9BB Cells 120N Tensile Strength Frame
120N Tensile Strength Frame 4mm² Qualified cable with MC4 High Transmittance EVA







Electrical Specification



Model 485W 490W 495W 500W 505W
Max Power(Pmax) [W] 485 490 495 500 505
Max Power Voltage(Vmp) [V] 38.00  38.15  373.00  38.45  38.60
Max Power Current(Imp) [A] 12.77  12.85  35.16  13.01  13.09
Open Circuit Voltage(Voc) [V] 45.20  45.35  10.61  45.65  45.80
Short Circuit Current(Isc) [A] 13.68  13.76  42.56  13.91  13.98
Module Efficiency [%] 20.42  20.64  20.85  21.06  21.27
Power Tolerance 0-5W
Max System Voltage DC 1500/1000(IEC)
Max Series Fuse Rating 20A
Operating  Temperature -40   to + 85ºC
STC Irradiance 1000W/m², cell temperature 25ºC, AM1.5

Certifications



  • ISO 9001: 2015: ISO Quality Management System
  • ISO 14001: 2015: ISO Environment Management System
  • ISO 45001: 2018: Occupational Health and Safety
  • CE & EU declaration of conformity
  • IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
  • IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
  • IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
  • UL1703 / UL 61730 – PV Module Safety Standards





Features

1. PERC technology improves efficiency, increases power generation, and contributes to lower LCOE.

2. Lower Heatspot Risk. Innovative circuit design and "Half Cell" structu re decrease the temperature of heatspots and effectively reduce power loss.

3. Reliable performance in low-light conditions such as in the morning,at dusk or during raining days.

4. Carefully selected materials ensure the module still works well underthe condition of 2400Pa wind load and 5400Pa snow load.

5. High quality solarcelland advanced processing technology contribute to excellent PID resistance performance.


6. 12 years products warranty and 25 years linear output power warranty.
