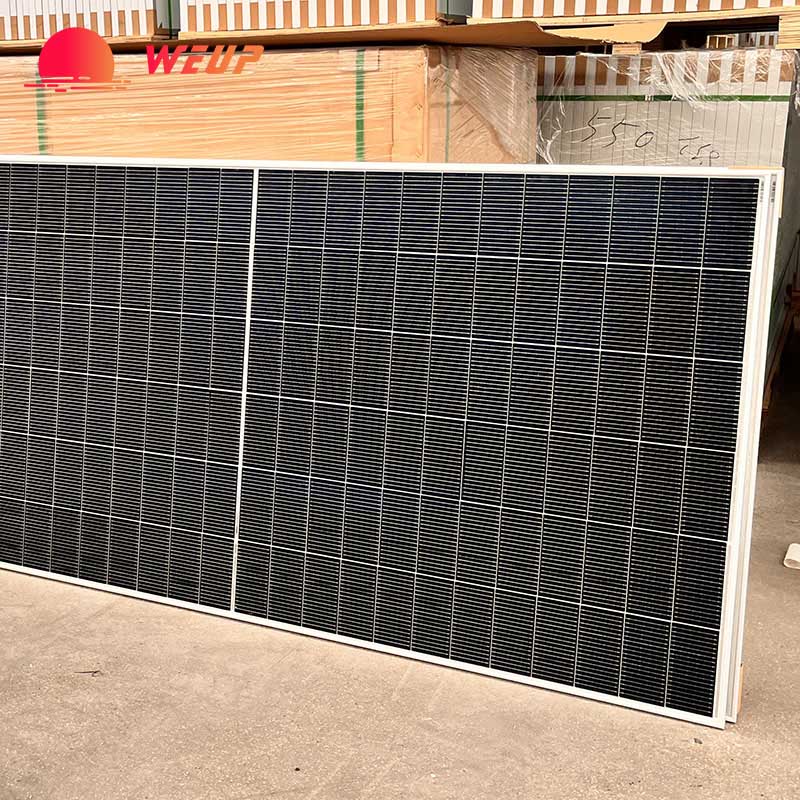

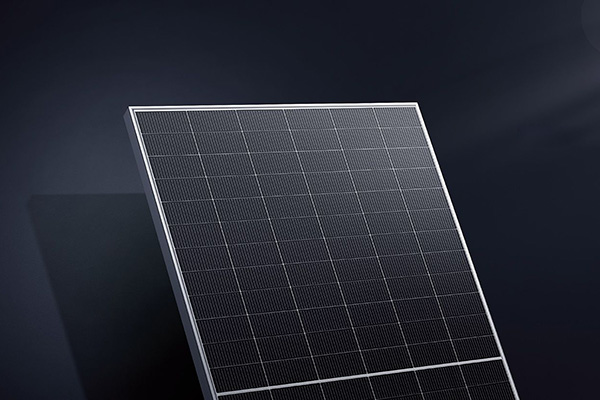

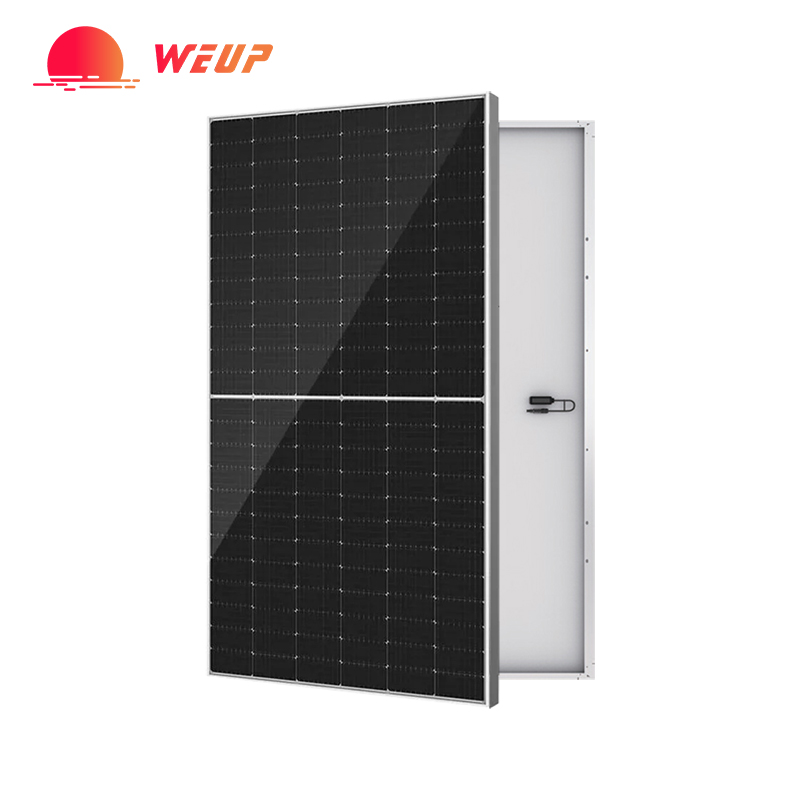

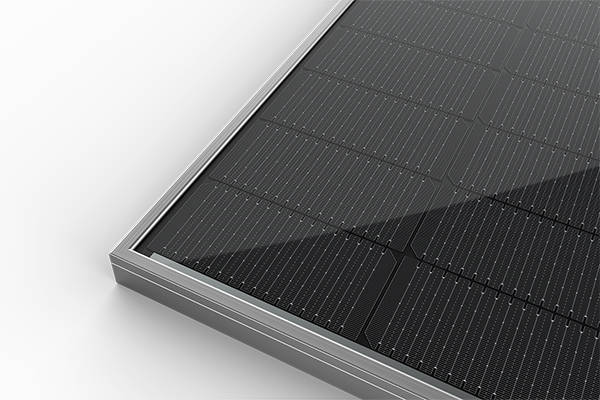

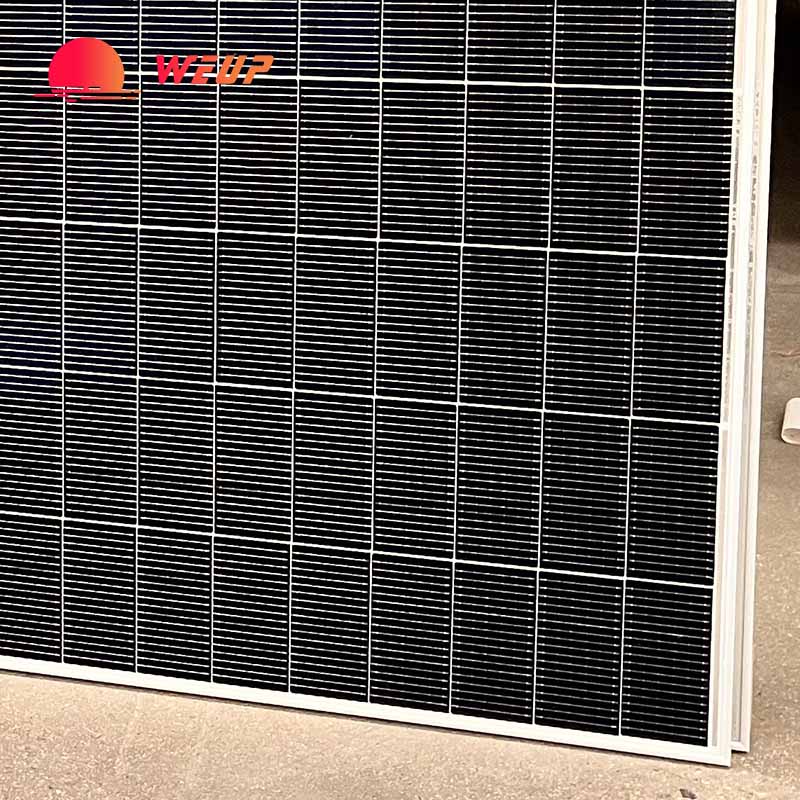

N-Type 600W TOPCon Solar PV Panel

All standard silicon solar panels are composed of silicon wafers mixed with various chemicals, generating power production. The difference between P-Types and N-Types involves the chemicals used during manufacturing. Specifically, boron is the chemical mixed with the silicon wafers in a standard P-Type solar panel. Boron has one less electron than silicon, which makes the solar cell positively charged. On the other hand, an N-Type solar cell uses phosphorus, which has one more electron than silicon, and this makes an N-Type solar cell negatively charged.

The long haul through trial and error in the solar industry has reached a place where it is clear that N-Type solar cells are the more efficient path forward. WEUP already developed a top-of-the-line N-Type solar cell, but it has also proven that this is the path forward by setting a new world record for efficiency.

Features

	1. TOPCon Technology Innovation. Selective Passivation Contact. 2. Ultra-high Power Generation/Ultra-high Efficiency 23% 3. Optimized Temperature Coefficient 4. Enhanced Reliability & Lower LID / LETID
30 Power Warranty First year degradation ≤ 1% Linear degradation -0.4%
	Optimized Temperature Coefficient -0.29%/ºC The temperature coefficient of P-type is -0.35%/ºC Under high temperature condition, generating 2% more power than P-type

Electrical Specification

Certifications

• ISO 9001: 2015: ISO Quality Management System
• ISO 14001: 2015: ISO Environment Management System
• ISO 45001: 2018: Occupational Health and Safety
• CE & EU declaration of conformity
• IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
• IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
• IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
• UL1703 / UL 61730 – PV Module Safety Standards
