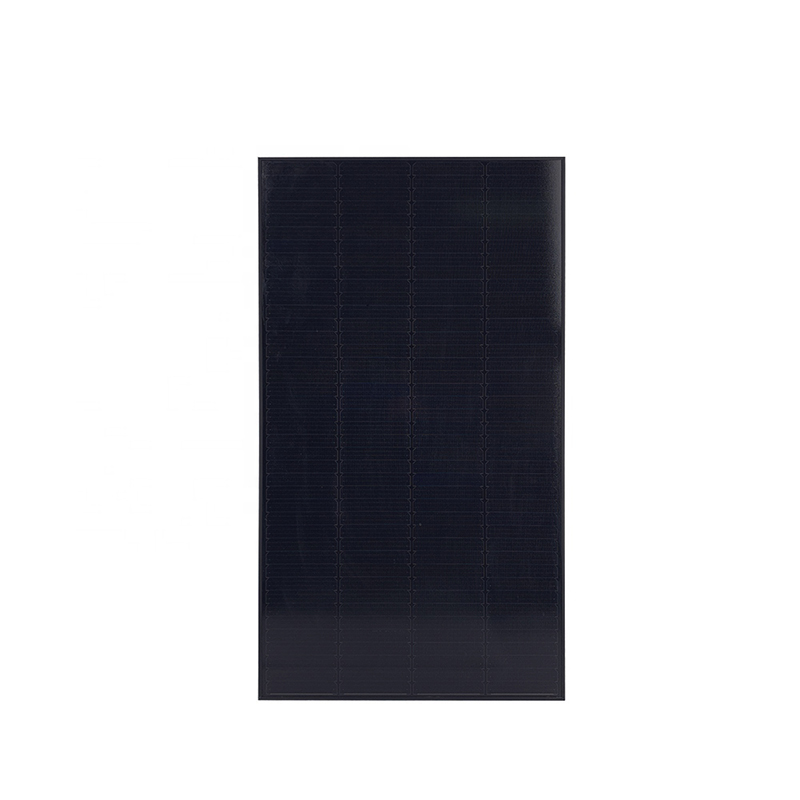

Full Black optional
|
1. Higher module efficiency and compact size.
2. Weakened hot-spot effect, lower module failure rate and increased stability by shingle-tech.
3. Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.

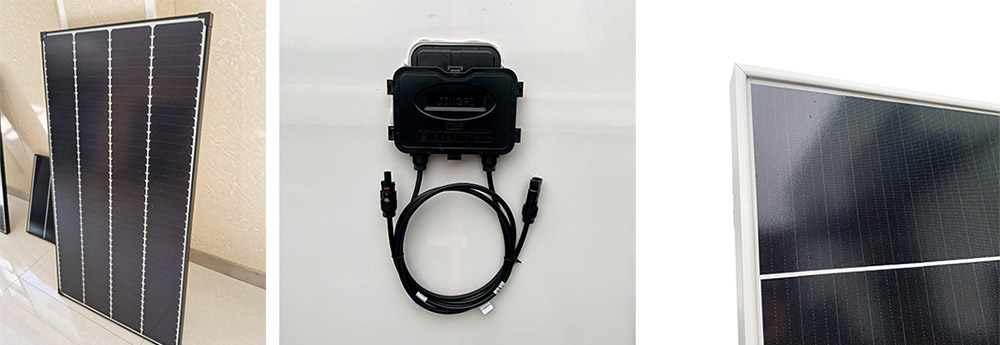

4. IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.
|
|
 |
Electrical Specification
| Module Name | WP30-36M | WP60-36M | WP80-36M | WP100-36M | WP150-36M |
| Nominal Power | 30W | 60W | 80W | 100W | 150W |
| Cell Efficiency | 21.40% | 21.40% | 21.40% | 21.40% | 21.40% |
| Maximum Power Current (Impp) | 1.70A | 3.31A | 3.73A | 5.05A | 6.99A |
| Maximum Power Voltage (Vmpp) | 17.60V | 18.15V | 21.45V | 19.8V | 21.45V |
| Open-circuit Voltage (Voc) |
20.8V | 21.45V | 25.35V | 23.4V | 25.35V |
| Short-circuit Current (Isc) |
1.94A | 3.83A | 4.24A | 5.56A | 7.51A |
| Maximum System Voltage | 100V | ||||
| Output Tolerance | 3% | ||||
| Cable | 700mm / 2.5mm2 | ||||
| Cell Type | Monocrystalline | ||||
| Connector Type | MC4 / MC4 Compatible | ||||
| Surface Material | ETFE | ||||
| Junction box rating | ≥IP67 | ||||
| Number of Diodes | One | ||||
| Working Temperature | -40ºC~+80ºC | ||||
Certifications

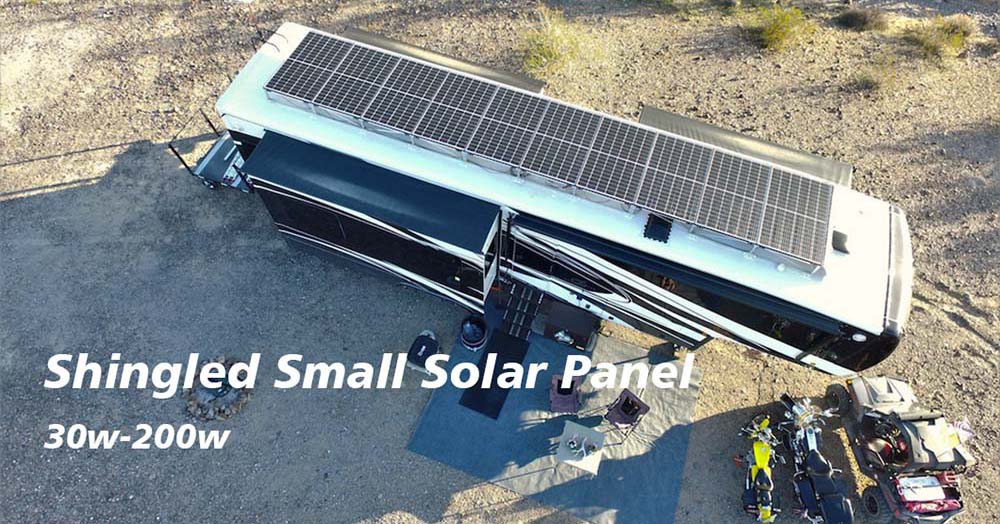

Shinged 30W 60W 100W 150W 180W small solar panel for RV caravan solar energy system Full Black optional
