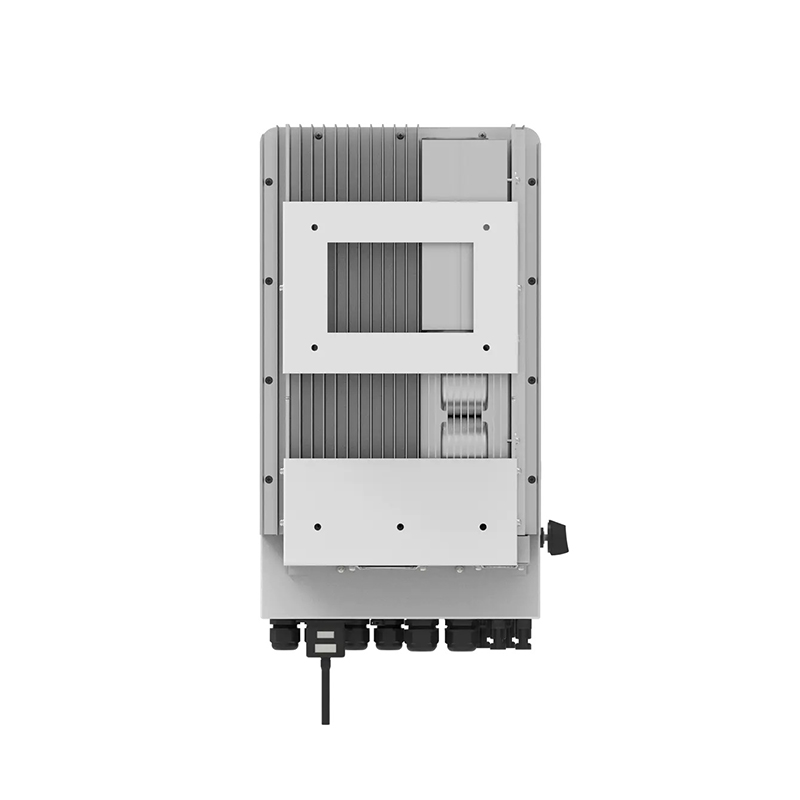

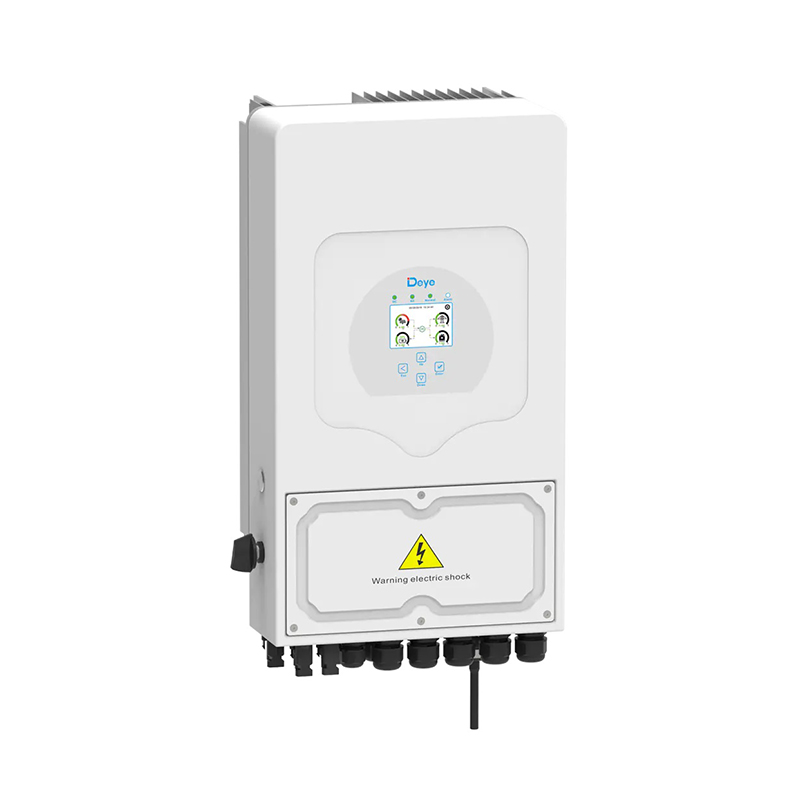

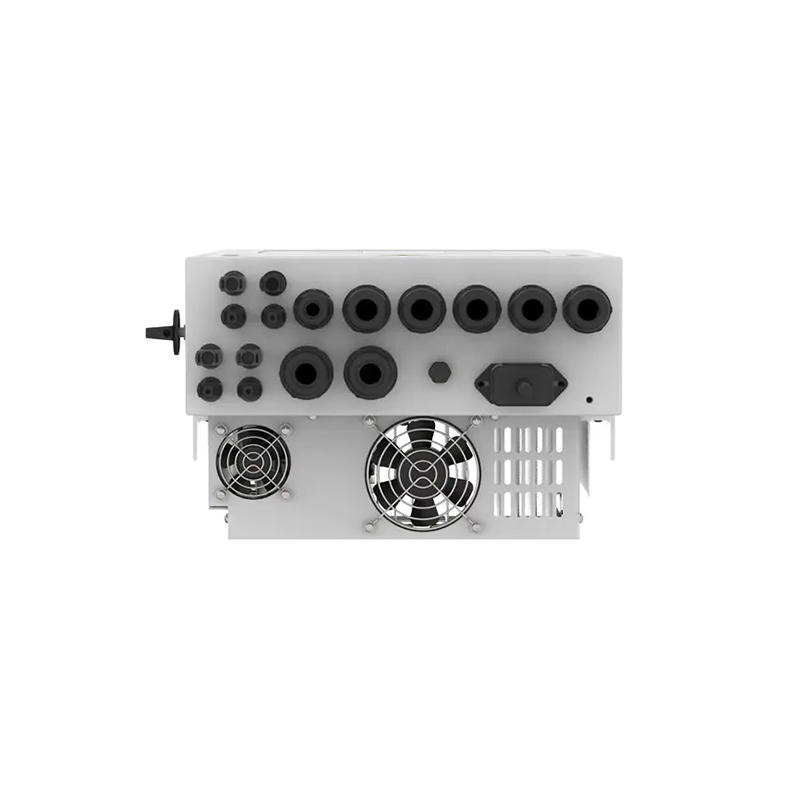

Deye SUN-3.6/5/6/7.6/8K-SG05LP1-EU | 3.6-8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

SUN-5K-SG05LP1-EU
SUN-3.6K-SG05LP1-EU
SUN-6K-SG05LP1-EU
SUN-7.6K-SG05LP1-EU
SUN-8K-SG05LP1-EU

Deye SUN-3.6/5/6/7.6/8K-SG05LP1-EU | 3.6-8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 190A
  • Max.16pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • 48V low voltage battery, safe and reliable
  • Unique Smart Load application and Grid peak shaving function
  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

SUN-3.6/5/6/7.6/8K-SG05LP1-EU hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/8K-SG05. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication



Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.



Technical Specifications



Model SUN-3.6K-SG05LP1-EU SUN-5K-SG05LP1-EU SUN-6K-SG05LP1-EU SUN-7.6K-SG05LP1-EU SUN-8K-SG05LP1-EU
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 90 120 135 190 190
Max. Discharging Current (A) 90 120 135 190 190
Charging Curve 3 Stages / Equalization
External Temperature Sensor Yes
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 4680 6500 7800 9880 10400
Rated PV Input Voltage (V) 370 (125~500)
MPPT Voltage Range (V) 150~425
Start-up Voltage (V) 125
Full Load DC Voltage Range (V) 300-425 200-425
PV Input Current (A) 13+13 26+26
Max. PV ISC (A) 17+17 34+34
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 1+1 2+2
AC Output Data
Rated AC Output Active Power (W) 3600 5000 6000 7600 8000
Max AC Output Active Power (W) 3690 5500 6600 8360 8800
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 16.4/15.7 22.7/21.7 27.3/26.1 34.5/33 36.4/34.8
Max AC Output Current (A) 18/17.2 25/23.9 30/28.7 38/36.3 40/38.3
Max. Continuous AC Passthrough (A) 35 40 50
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Power Factor 1
Output Frequency and Voltage 50/60Hz; L/N/PE 220/230Vac
Grid Type Single Phase
Total Harmonic Distortion (THD) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99.90%
Protection
Integrated Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard     IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -40~60℃, >45℃ Derating
Cooling Smart Cooling
Noise (dB) ≤30 dB
Communication with BMS RS485; CAN
Weight (kg) 24
Cabinet Size (WxHxD mm) 330×580×232 (Excluding Connectors and Brackets)
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 Years (10 Years Optional)
