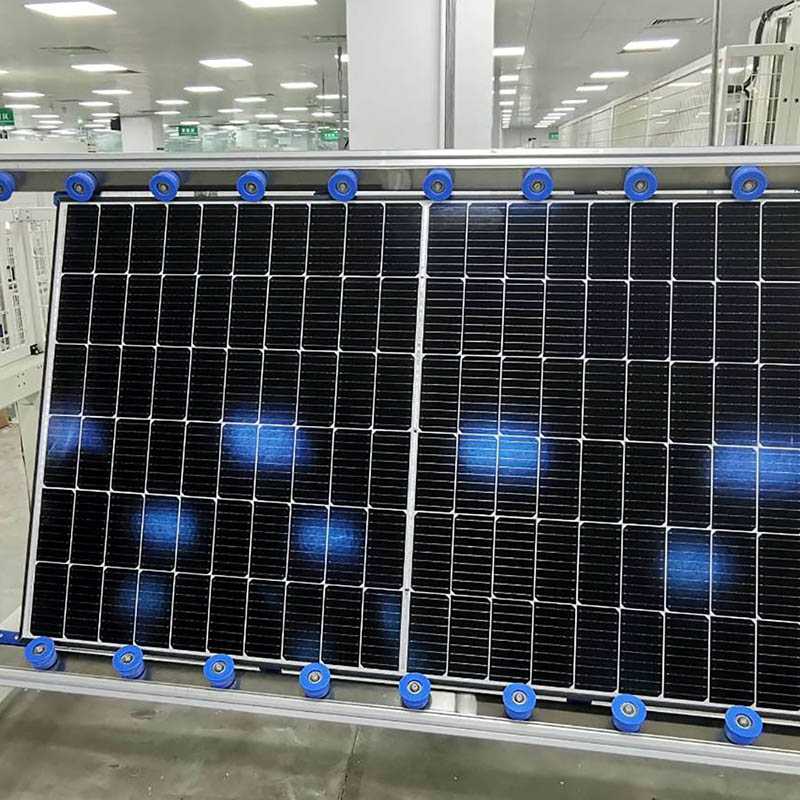

380W Black Frame Solar Roof Tiles Panel with High Efficiency for Solar Power Energy PV System

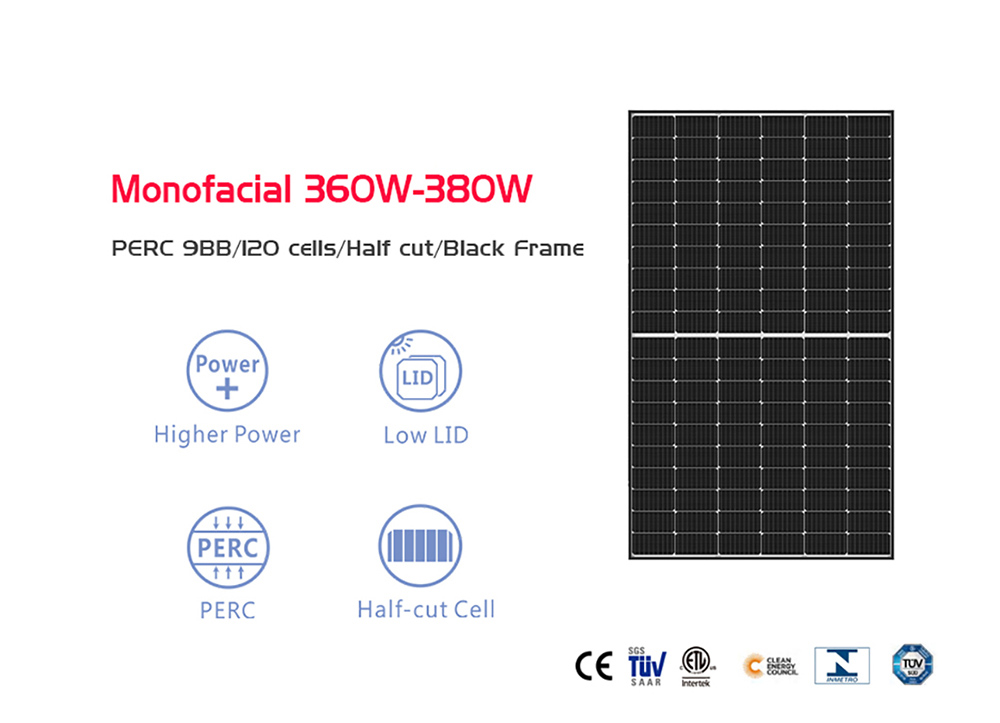

With 166mm Cells Mono PERC with MBB & Half-cut Technology. Power range 360W 370W 380W. Black anodized aluminium alloy frame.

  • Model :

    WP380M-60HPH
  • Solar Cell :

    Mono Perc 166mm
  • Weight :

    21kg
  • Dimensions :

    1775*1038*35mm
  • Connector Type :

    MC4 PV Connector

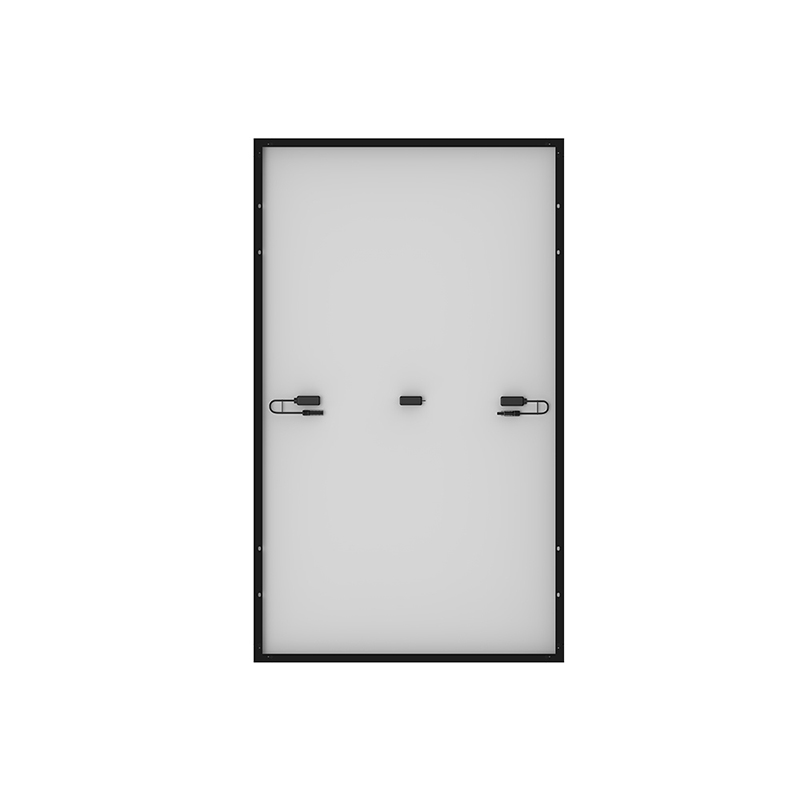

  • Junction Box :

    IP68, 3 Bypass Diode
  • Cables :

    4mm2

This solar module use multi-bus bar technology, which can shorten the current conduction distance by more than 50% and lower the internal ribbon resistance loss. With finer and narrower bus bars, more sunlight will be reflected back from the round ribbon and onto the cell, thus increasing solar panel efficiency. The unique circuit design of half-cut cells can reduce power loss to 1/4 compared to full cells solar PV module, which results in a decrease of electrical resistance within the ribbon and finally improves the overall module efficiency by up to 0.6%.











Technology

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Half-cut cell is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module's power increases. The reliability of module is also enhanced.The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.







Materials

12%  Ultra Clear Tempered Glass. Higher Efficiency,9BB Cells 120N Tensile Strength Frame
120N Tensile Strength Frame 4mm² Qualified cable with MC4 High Transmittance EVA







Electrical Specification

Model WP360M-60HPH WP365M-60HPH WP370M-60HPH WP375M-60HPH WP380M-60HPH
Max Power(Pmax) [W] 360 365 370 375 380
Open Circuit Voltage(Voc) [V] 40.7 40.9 41.1 41.3 41.5
Short Circuit Current(Isc) [A] 11.15 11.2 11.26 11.31 11.35
Max Power Voltage(Vmp) [V] 34.3 34.6 34.9 35.2 35.5
Max Power Current(Imp) [A] 10.5 10.56 10.61 10.66 10.71
Module Efficiency [%] 19.8 20 20.3 20.6 20.9
Power Tolerance 0-5W
Max System Voltage DC 1500/1000(IEC)
Max Series Fuse Rating 20A
Operating  Temperature - 40 to + 85ºC
STC Irradiance 1000W/m², cell temperature 25ºC, AM1.5





Certifications



  • ISO 9001: 2015: ISO Quality Management System
  • ISO 14001: 2015: ISO Environment Management System
  • ISO 45001: 2018: Occupational Health and Safety
  • CE & EU declaration of conformity
  • IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
  • IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
  • IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
  • UL1703 / UL 61730 – PV Module Safety Standards





Features

  • Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 20.9%)
  • Slower power degradation enabled by Low LID Mono PERC technology
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current
