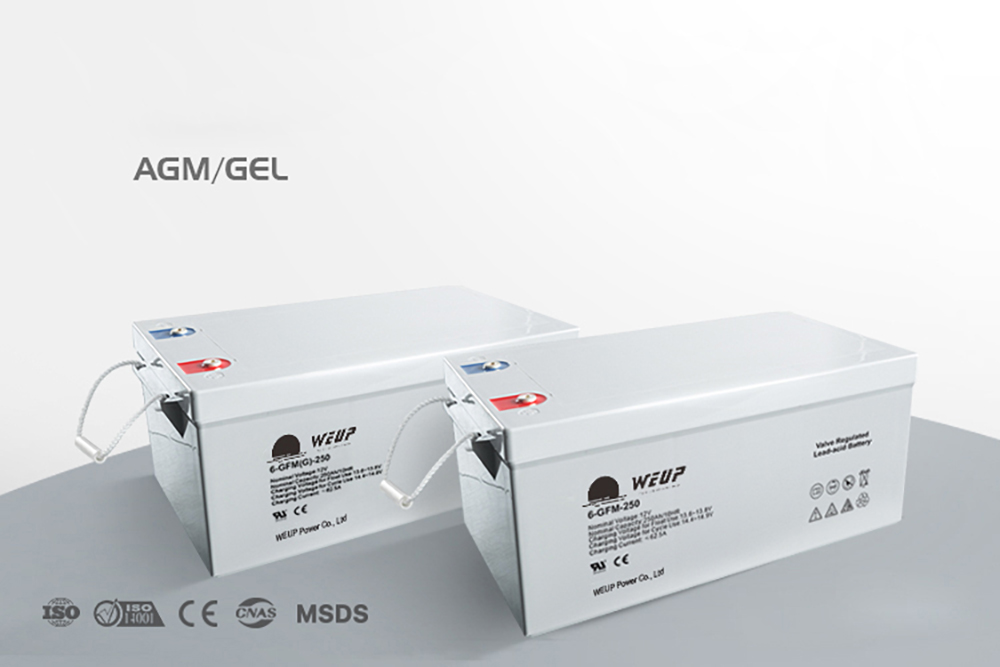

12V/2V Gel/Lead Acid AGM solar Battery For Solar Power System
Rechargeable :
ChargeableType :
Gel/Lead acidMaintenance :
Free MaintenancePositive Plate :
Lead DioxideNegative Plate :
LeadContainer :
ABSSafety Valve :
Si-RubberTerminal :
CopperSeparator :
FiberglassOEM :
AcceptableVoltage :
12V/2V

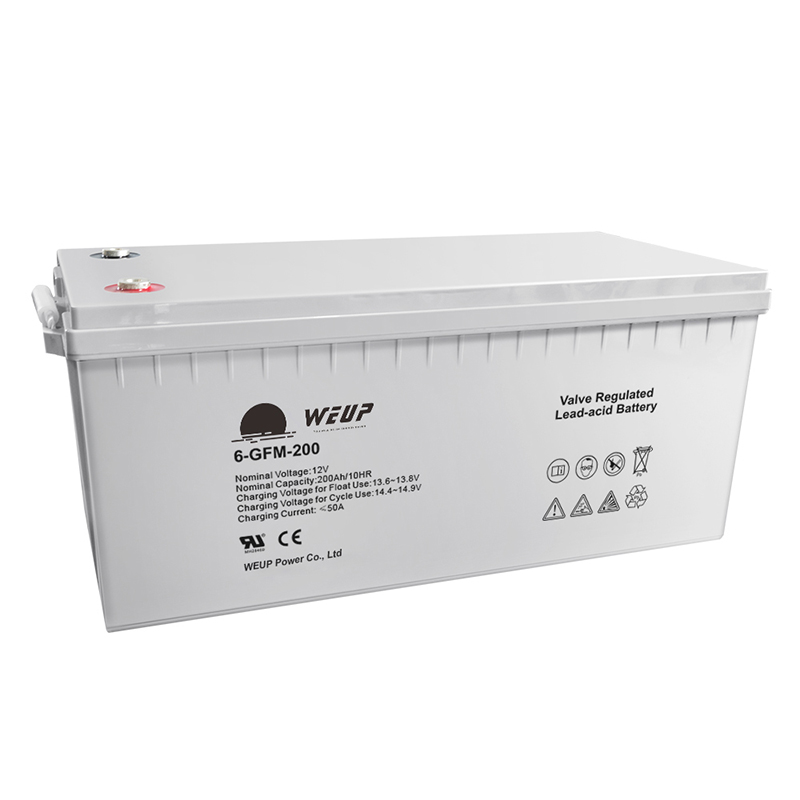

12V Battery
| Model | Voltage (V) |
Capacity (AH) |
Weight (KG) |
Dimension(MM) | Total Height | Terminal | ||||||||||||||||||||
| Length | Width | Height | ||||||||||||||||||||||||
| 12V 100Ah | 12 | 100 | 30.5 | 331 | 174 | 214 | 219 | M8 | ||||||||||||||||||
| 12V 150Ah | 12 | 150 | 44.8 | 484 | 171 | 241 | 241 | M8 | ||||||||||||||||||
| 12V 180Ah | 12 | 180 | 52.8 | 532 | 206 | 216 | 221 | M8 | ||||||||||||||||||
| 12V 200Ah | 12 | 200 | 60.8 | 522 | 240 | 219 | 224 | M8 | ||||||||||||||||||
| 12V 220Ah | 12 | 220 | 63.3 | 522 | 240 | 219 | 224 | M8 | ||||||||||||||||||
| 12V 250Ah | 12 | 250 | 70.8 | 521 | 269 | 220 | 224 | M8 | ||||||||||||||||||
KEY FEATURES:
- Maintenance-free,absorbent glass mat technology
- Wide suitability of ,absorbent glass mat technology
- Low self discharge
- Long designed service life
- Excellent discharge performance
- Environment friendliness
APPLICATIONS:
- Solar and wind energy storage system
- EPS and UPS battery backup
- Signal system,emergency lighting system,security system
- Telecommunication equipment
- Power source for portable devices or tools

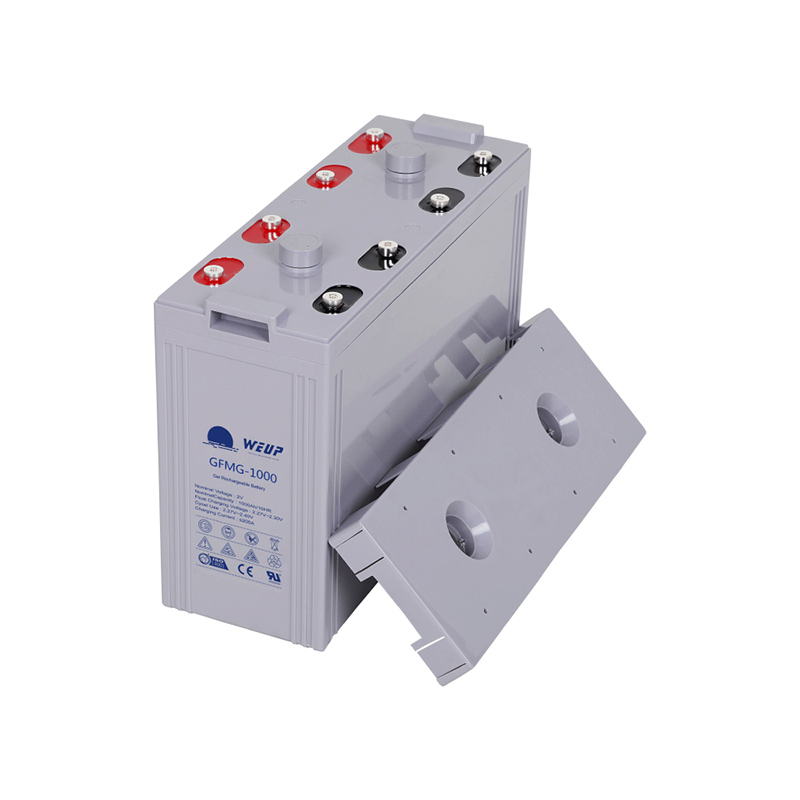

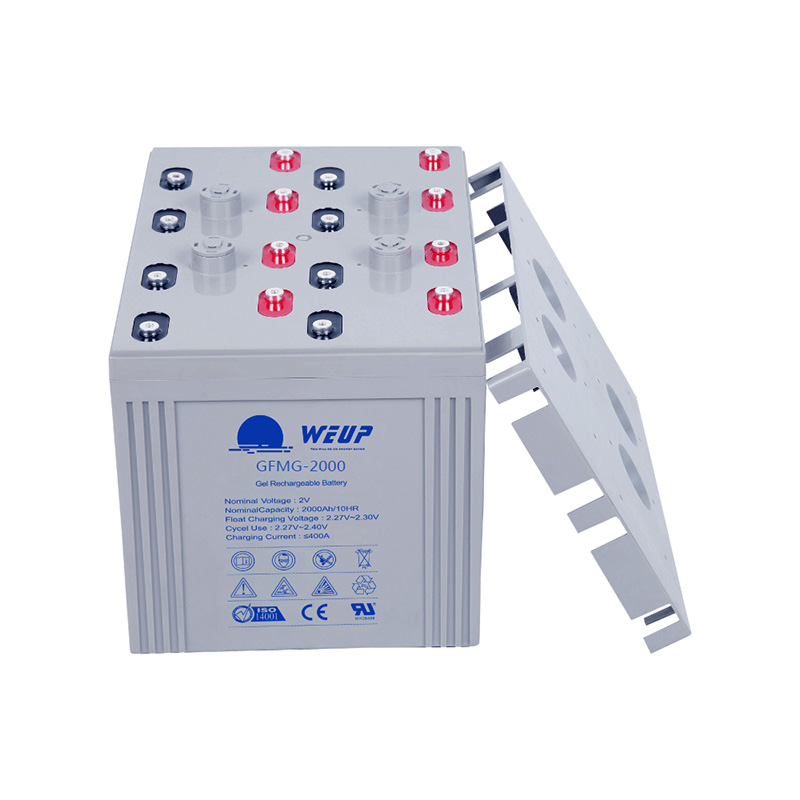

2V Battery
| Model | Voltage (V) |
Capacity (AH) |
Weight (KG) |
Dimension(MM) | Terminal | |||||||||||||||||||||
| Length | Width | Height | Total Height | |||||||||||||||||||||||
| 2V 200Ah | 2 | 200 | 13.5 | 172 | 110 | 330 | 367 | B3 | ||||||||||||||||||
| 2V 300Ah | 2 | 300 | 20 | 172 | 150 | 330 | 365 | B3 | ||||||||||||||||||
| 2V 400Ah | 2 | 400 | 26.5 | 211 | 175 | 330 | 368 | B3 | ||||||||||||||||||
| 2V 500Ah | 2 | 500 | 32 | 241 | 172 | 330 | 366 | B3 | ||||||||||||||||||
| 2V 600Ah | 2 | 600 | 39 | 301 | 175 | 330 | 368 | B3 | ||||||||||||||||||
| 2V 800Ah | 2 | 800 | 52 | 411 | 175 | 330 | 365 | B3 | ||||||||||||||||||
| 2V 1000Ah | 2 | 1000 | 63 | 474 | 175 | 328 | 366 | B3 | ||||||||||||||||||
| 2V 1500Ah | 2 | 1500 | 220 | 401 | 347 | 342 | 378 | B3 | ||||||||||||||||||
| 2V 2000Ah | 2 | 2000 | 280 | 490 | 349 | 342 | 383 | B3 | ||||||||||||||||||
| 2V 3000Ah | 2 | 3000 | 420 | 711 | 353 | 342 | 383 | B3 | ||||||||||||||||||
KEY FEATURES:
- Long service life according to EUROBAT classification
- High gas recombination efficiency
- Wide suitability of ambient temperature range
- Low self discharge
APPLICATIONS:
- Solar and wind energy storage system
- EPS and UPS battery backup
- Telecommunication equipment
- Power source for portable devices or tools
- Signal system,emergency lighting system,security system
